• L'elevata precisione e l'elevata efficienza consentono di ottenere una superficie di lavorazione di alta qualità degli elettrodi di rame.

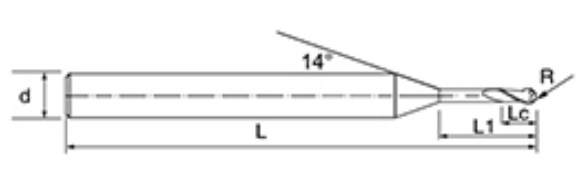

| No. | Diametro D | Angolo R R | lunghezza del flauto Lc | Lunghezza effettiva L1 | Lunghezza totale L | Diametro gambo d | Conteggio delle lame F |
| NNX-2BSP-D1-L3 | 1 | 0.5 | 1 | 3 | 50 | 4 | 2 |
| NNX-2BSP-D1-L4 | 1 | 0.5 | 1 | 4 | 50 | 4 | 2 |
| NNX-2BSP-D1-L5 | 1 | 0.5 | 1 | 5 | 50 | 4 | 2 |
| NNX-2BSP-D1-L6 | 1 | 0.5 | 1 | 6 | 50 | 4 | 2 |
| NNX-2BSP-D1-L8 | 1 | 0.5 | 1 | 8 | 50 | 4 | 2 |
| NNX-2BSP-D1-L10 | 1 | 0.5 | 1 | 10 | 50 | 4 | 2 |
| NNX-2BSP-D1-L12 | 1 | 0.5 | 1 | 12 | 50 | 4 | 2 |
| NNX-2BSP-D1-L14 | 1 | 0.5 | 1 | 14 | 50 | 4 | 2 |
| NNX-2BSP-D1-L16 | 1 | 0.5 | 1 | 16 | 50 | 4 | 2 |
| NNX-2BSP-D1-L18 | 1 | 0.5 | 1 | 18 | 50 | 4 | 2 |
| NNX-2BSP-D1-L20 | 1 | 0.5 | 1 | 20 | 50 | 4 | 2 |
| NNX-2BSP-D1.5-L4 | 1.5 | 0.75 | 1.5 | 4 | 50 | 4 | 2 |
| NNX-2BSP-D1.5-L5 | 1.5 | 0.75 | 1.5 | 5 | 50 | 4 | 2 |
| NNX-2BSP-D1.5-L6 | 1.5 | 0.75 | 1.5 | 6 | 50 | 4 | 2 |
| NNX-2BSP-D1.5-L8 | 1.5 | 0.75 | 1.5 | 8 | 50 | 4 | 2 |
| NNX-2BSP-D1.5-L10 | 1.5 | 0.75 | 1.5 | 10 | 50 | 4 | 2 |
| NNX-2BSP-D1.5-L12 | 1.5 | 0.75 | 1.5 | 12 | 50 | 4 | 2 |
| NNX-2BSP-D1.5-L16 | 1.5 | 0.75 | 1.5 | 16 | 50 | 4 | 2 |
| NNX-2BSP-D1.5-L18 | 1.5 | 0.75 | 1.5 | 18 | 50 | 4 | 2 |
| NNX-2BSP-D1.5-L20 | 1.5 | 0.75 | 1.5 | 20 | 50 | 4 | 2 |
| NNX-2BSP-D2-L6 | 2 | 1 | 2 | 6 | 50 | 4 | 2 |
| NNX-2BSP-D2-L8 | 2 | 1 | 2 | 8 | 50 | 4 | 2 |
| NNX-2BSP-D2-L10 | 2 | 1 | 2 | 10 | 50 | 4 | 2 |
| NNX-2BSP-D2-L12 | 2 | 1 | 2 | 12 | 50 | 4 | 2 |
| NNX-2BSP-D2-L14 | 2 | 1 | 2 | 14 | 50 | 4 | 2 |
| NNX-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 50 | 4 | 2 |
| NNX-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 50 | 4 | 2 |
| NNX-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 50 | 4 | 2 |
| NNX-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 60 | 6 | 2 |
| NNX-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 60 | 6 | 2 |
| NNX-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 60 | 6 | 2 |
| NNX-2BSP-D2-L25 | 2 | 1 | 2 | 25 | 60 | 6 | 2 |
| NNX-2BSP-D3-L8 | 3 | 1.5 | 3 | 8 | 50 | 4 | 2 |
| NNX-2BSP-D3-L10 | 3 | 1.5 | 3 | 10 | 50 | 4 | 2 |
| NNX-2BSP-D3-L12 | 3 | 1.5 | 3 | 12 | 50 | 4 | 2 |
| NNX-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 50 | 4 | 2 |
| NNX-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 50 | 4 | 2 |
| NNX-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 60 | 6 | 2 |
| NNX-2BSP-D3-L18 | 3 | 1.5 | 3 | 18 | 60 | 6 | 2 |
| NNX-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 60 | 6 | 2 |
| NNX-2BSP-D3-L25 | 3 | 1.5 | 3 | 25 | 60 | 6 | 2 |
| NNX-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 75 | 6 | 2 |
| NNX-2BSP-D3-L18 | 3 | 1.5 | 3 | 18 | 75 | 6 | 2 |
| NNX-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 75 | 6 | 2 |
| NNX-2BSP-D3-L25 | 3 | 1.5 | 3 | 25 | 75 | 6 | 2 |
| NNX-2BSP-D3-L30 | 3 | 1.5 | 3 | 30 | 75 | 6 | 2 |
| NNX-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 60 | 6 | 2 |
| NNX-2BSP-D4-L18 | 4 | 2 | 4 | 18 | 60 | 6 | 2 |
| NNX-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 60 | 6 | 2 |
| NNX-2BSP-D4-L25 | 4 | 2 | 4 | 25 | 60 | 6 | 2 |
| NNX-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 75 | 6 | 2 |
| NNX-2BSP-D4-L18 | 4 | 2 | 4 | 18 | 75 | 6 | 2 |
| NNX-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 75 | 6 | 2 |
| NNX-2BSP-D4-L25 | 4 | 2 | 4 | 25 | 75 | 6 | 2 |
| NNX-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 75 | 6 | 2 |
| NNX-2BSP-D4-L35 | 4 | 2 | 4 | 35 | 75 | 6 | 2 |
| Serie di strumenti | Diametro | Raggio | Raggio d'angolo | lunghezza del flauto | Lunghezza effettiva | Lunghezza totale | Diametro gambo | |||
| D | R | CR | Lc | L1 | L | d | ||||
| Frese in metallo duro NNX per elettrodo di rame | D0.1~D0.9 | 0 -0,005 | R0,05~R2 | /-0,005 | CR0,05~CR0,5 | /-0,005 | 0 0.3 | 0 0.3 | 0.5 -0,5 | h5 |
| D1~D3.5 | 0 -0,005 | |||||||||
| D4~D10 | -0,003 -0,015 | R3~R5 | /-0,005 | CR1.0~CR3.0 | /-0,008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0,003 -0,018 | R6~R10 | /-0,008 | |||||||

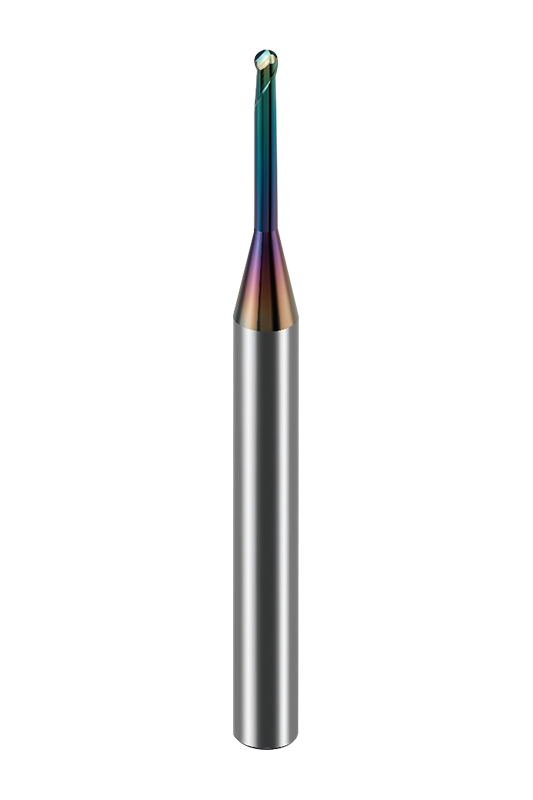

Le frese per elettrodi di rame con estremità sferica a scanalatura profonda a 2 scanalature NNX-2BSP sono progettate per la lavorazione di elettrodi di rame e offrono una varietà di opzioni di dimensioni per soddisfare le diverse esigenze di lavorazione. Diversi sottomodelli coprono una gamma completa di specifiche, dai microdiametri alle dimensioni più grandi, consentendo agli utenti di scegliere liberamente in base alle applicazioni specifiche per garantire un equilibrio tra lavorazione fine e taglio efficiente.
La fresa adotta un design a testa sferica con scanalatura profonda, che le consente di avere eccellenti prestazioni di rimozione dei trucioli nella lavorazione degli elettrodi di rame, riducendo al contempo la resistenza al taglio e migliorando la finitura superficiale della lavorazione. L'angolo dell'elica di 30° ottimizza la stabilità di taglio, riduce efficacemente le vibrazioni e aumenta la durata dell'utensile, rendendolo adatto alla lavorazione di superfici complesse ad alta precisione.
NNX-2BSP utilizza un substrato di particelle ultrafini (0,2μm) con la più recente tecnologia di rivestimento DLC per migliorare notevolmente la durezza superficiale dell'utensile, ridurre l'usura dell'utensile e migliorare la durata. Il processo di produzione ad alta precisione garantisce un controllo rigoroso delle tolleranze dimensionali dell'utensile e fornisce un'eccellente precisione di lavorazione, rendendolo performante in applicazioni di lavorazione di elettrodi di rame ad alta durezza e ad alta richiesta.
Costituzione d'impresa
Dipendenti

Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 2 frese per elettrodi in rame con estremità sferica a scanalatura profonda Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 2 frese per elettrodi in rame con estremità sferica a scanalatura profonda Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
Ti risponderemo entro 12 ore dalla ricezione della richiesta nei giorni feriali.
Siamo produttori, produciamo e vendiamo noi stessi.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 2 frese per elettrodi in rame con estremità sferica a scanalatura profonda Suppliers.
I nostri prodotti coprono quasi l'intera industria degli stampi, l'industria della difesa, l'industria aerospaziale, l'industria automobilistica, i prodotti elettronici e altri campi.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 2 frese per elettrodi in rame con estremità sferica a scanalatura profonda.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 2 frese per elettrodi in rame con estremità sferica a scanalatura profonda Factory
Innanzitutto, dopo ogni processo, effettuiamo le ispezioni corrispondenti. Per il prodotto finale, effettueremo un'ispezione completa al 100% in base alle esigenze del cliente e agli standard internazionali;
Quindi, disponiamo di apparecchiature di prova avanzate e complete di prim'ordine nel settore, come analizzatori spettrali, microscopi metallografici, ecc., che possono garantire la stabilità e la coerenza degli utensili da taglio, soddisfacendo al tempo stesso i requisiti di test ad alta precisione dei clienti per gli utensili da taglio.
Al momento del preventivo, confermeremo con te il metodo di transazione, FOB, CIF, CNF o altre opzioni. Quando si produce in grandi quantità, di solito effettuiamo prima un pagamento anticipato del 30%, quindi paghiamo il saldo rimanente dietro presentazione della polizza di carico. Utilizziamo principalmente T/T come metodo di pagamento, ma anche L/C è accettabile.
