• La fresa universale è adatta per il trattamento termico di tutte le serie di materiali in acciaio. Ha un design con struttura con scanalatura a U ed è adatto sia per la sgrossatura che per la finitura.
• È adatto anche alla lavorazione di materiali non acciaiosi e alluminio. Ha una gamma completa di specifiche e modelli e una vasta gamma di usi.

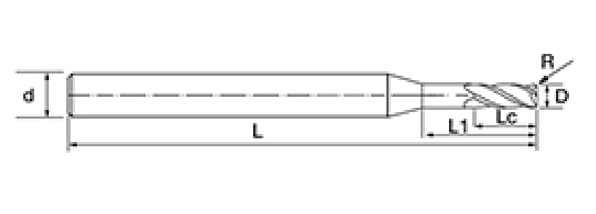

| No. | Diametro D | Angolo R R | lunghezza del flauto Lc | Lunghezza effettiva L1 | Lunghezza totale L | Diametro gambo d | Conteggio delle lame F |
| NNC-4RSP-D1-L4 | 1 | 0.1 | 1 | 4 | 50 | 4 | 4 |
| NNC-4RSP-D1-L6 | 1 | 0.1 | 1 | 6 | 50 | 4 | 4 |
| NNC-4RSP-D1-L8 | 1 | 0.1 | 1 | 8 | 50 | 4 | 4 |
| NNC-4RSP-D1-L10 | 1 | 0.1 | 1 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D1-L12 | 1 | 0.1 | 1 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D1-L4 | 1 | 0.2 | 1 | 4 | 50 | 4 | 4 |
| NNC-4RSP-D1-L6 | 1 | 0.2 | 1 | 6 | 50 | 4 | 4 |
| NNC-4RSP-D1-L8 | 1 | 0.2 | 1 | 8 | 50 | 4 | 4 |
| NNC-4RSP-D1-L10 | 1 | 0.2 | 1 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D1-L12 | 1 | 0.2 | 1 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D1-L16 | 1 | 0.2 | 1 | 16 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L6 | 1.5 | 0.2 | 1.5 | 6 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L8 | 1.5 | 0.2 | 1.5 | 8 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L10 | 1.5 | 0.2 | 1.5 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L12 | 1.5 | 0.2 | 1.5 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L16 | 1.5 | 0.2 | 1.5 | 16 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L18 | 1.5 | 0.2 | 1.5 | 18 | 50 | 4 | 4 |
| NNC-4RSP-D1.5-L20 | 1.5 | 0.2 | 1.5 | 20 | 50 | 4 | 4 |
| NNC-4RSP-D2-L6 | 2 | 0.1 | 2 | 6 | 50 | 4 | 4 |
| NNC-4RSP-D2-L8 | 2 | 0.1 | 2 | 8 | 50 | 4 | 4 |
| NNC-4RSP-D2-L10 | 2 | 0.1 | 2 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D2-L12 | 2 | 0.1 | 2 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D2-L6 | 2 | 0.2 | 2 | 6 | 50 | 4 | 4 |
| NNC-4RSP-D2-L8 | 2 | 0.2 | 2 | 8 | 50 | 4 | 4 |
| NNC-4RSP-D2-L10 | 2 | 0.2 | 2 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D2-L12 | 2 | 0.2 | 2 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D2-L16 | 2 | 0.2 | 2 | 16 | 50 | 4 | 4 |
| NNC-4RSP-D2-L18 | 2 | 0.2 | 2 | 18 | 50 | 4 | 4 |
| NNC-4RSP-D2-L20 | 2 | 0.2 | 2 | 20 | 50 | 4 | 4 |
| NNC-4RSP-D3-L10 | 3 | 0.2 | 3 | 10 | 50 | 4 | 4 |
| NNC-4RSP-D3-L12 | 3 | 0.2 | 3 | 12 | 50 | 4 | 4 |
| NNC-4RSP-D3-L16 | 3 | 0.2 | 3 | 16 | 50 | 4 | 4 |
| NNC-4RSP-D3-L20 | 3 | 0.2 | 3 | 20 | 60 | 6 | 4 |
| NNC-4RSP-D3-L20 | 3 | 0.2 | 3 | 20 | 75 | 6 | 4 |
| NNC-4RSP-D3-L26 | 3 | 0.2 | 3 | 26 | 60 | 6 | 4 |
| NNC-4RSP-D3-L26 | 3 | 0.2 | 3 | 26 | 75 | 6 | 4 |
| NNC-4RSP-D3-L30 | 3 | 0.2 | 3 | 30 | 60 | 6 | 4 |
| NNC-4RSP-D3-L30 | 3 | 0.2 | 3 | 30 | 75 | 6 | 4 |
| NNC-4RSP-D3-L10 | 3 | 0.5 | 3 | 10 | 60 | 4 | 4 |
| NNC-4RSP-D3-L12 | 3 | 0.5 | 3 | 12 | 60 | 4 | 4 |
| NNC-4RSP-D3-L16 | 3 | 0.5 | 3 | 16 | 60 | 4 | 4 |
| NNC-4RSP-D3-L20 | 3 | 0.5 | 3 | 20 | 60 | 6 | 4 |
| NNC-4RSP-D3-L20 | 3 | 0.5 | 3 | 20 | 75 | 6 | 4 |
| NNC-4RSP-D3-L26 | 3 | 0.5 | 3 | 26 | 60 | 6 | 4 |
| NNC-4RSP-D3-L26 | 3 | 0.5 | 3 | 26 | 75 | 6 | 4 |
| NNC-4RSP-D3-L30 | 3 | 0.5 | 3 | 30 | 60 | 6 | 4 |
| NNC-4RSP-D3-L30 | 3 | 0.5 | 3 | 30 | 75 | 6 | 4 |
| NNC-4RSP-D4-L12 | 4 | 0.2 | 4 | 12 | 60 | 6 | 4 |
| NNC-4RSP-D4-L16 | 4 | 0.2 | 4 | 16 | 60 | 6 | 4 |
| NNC-4RSP-D4-L20 | 4 | 0.2 | 4 | 20 | 60 | 6 | 4 |
| NNC-4RSP-D4-L20 | 4 | 0.2 | 4 | 20 | 75 | 6 | 4 |
| NNC-4RSP-D4-L26 | 4 | 0.2 | 4 | 26 | 60 | 6 | 4 |
| NNC-4RSP-D4-L26 | 4 | 0.2 | 4 | 26 | 75 | 6 | 4 |
| NNC-4RSP-D4-L30 | 4 | 0.2 | 4 | 30 | 60 | 6 | 4 |
| NNC-4RSP-D4-L30 | 4 | 0.2 | 4 | 30 | 75 | 6 | 4 |
| NNC-4RSP-D4-L12 | 4 | 0.5 | 4 | 12 | 60 | 6 | 4 |
| NNC-4RSP-D4-L16 | 4 | 0.5 | 4 | 16 | 60 | 6 | 4 |
| NNC-4RSP-D4-L20 | 4 | 0.5 | 4 | 20 | 60 | 6 | 4 |
| NNC-4RSP-D4-L20 | 4 | 0.5 | 4 | 20 | 75 | 6 | 4 |
| NNC-4RSP-D4-L26 | 4 | 0.5 | 4 | 26 | 60 | 6 | 4 |
| NNC-4RSP-D4-L26 | 4 | 0.5 | 4 | 26 | 75 | 6 | 4 |
| NNC-4RSP-D4-L30 | 4 | 0.5 | 4 | 30 | 60 | 6 | 4 |
| NNC-4RSP-D4-L30 | 4 | 0.5 | 4 | 30 | 75 | 6 | 4 |
| Serie di strumenti | Diametro | Raggio | Raggio d'angolo | lunghezza del flauto | Lunghezza effettiva | Lunghezza totale | Diametro gambo | |||
| D | R | CR | Lc | L1 | L | d | ||||
| Frese universali in metallo duro NNC | D0.1~D0.9 | 0 -0,005 | R0,05~R2 | /-0,005 | CR0,05~CR0,5 | /-0,005 | 0 0.2 | 0 0.3 | 0 0.5 | h5 |
| D1.0~D4.0 | 0 -0,008 | 0 0.3 | 0 0.5 | |||||||
| D1.0~D3.5 | 0 -0,008 | R0,5~R1,75 | /-0,005 | CR0.1~CR0.5 | /-0,005 | 0 0.3 | 0 0.5 | 0 0.5 | h6 | |
| D4.0~D11.0 | 0 -0,012 | R2.0~R5.0 | /-0,008 | CR1.0~CR3.0 | /-0,008 | 0 0.5 | ||||
| D12.0~D20.0 | 0 -0,015 | R6.0~R10.0 | /-0,01 | |||||||

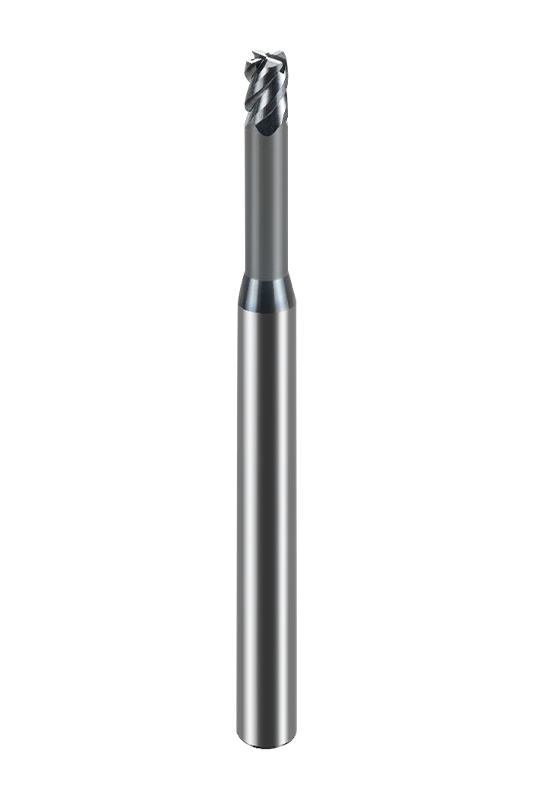

Le frese a punta tonda con scanalatura profonda a 4 scanalature NNC-4RSP sono disponibili in un'ampia gamma di dimensioni, da 0,5 mm a 12 mm di diametro, con lunghezze comuni della scanalatura di 2 mm, 4 mm, 6 mm e 8 mm e lunghezze totali di 50 mm, 60 mm e oltre. Questa varietà si adatta a diverse profondità e contorni, consentendo un funzionamento flessibile anche in spazi ristretti.
Queste frese presentano un design a punta tonda con scanalatura profonda, combinato con un angolo dell'elica di 35°, per garantire un'efficace evacuazione del truciolo e stabilità a notevoli profondità di taglio. La geometria a punta tonda con transizione circolare riduce la resistenza al taglio, migliora la levigatezza del taglio e aiuta a ottenere una migliore finitura superficiale riducendo al minimo le vibrazioni, migliorando così la precisione della lavorazione.
L'utensile è prodotto mediante rettifica CNC ad alta precisione, utilizzando un substrato in carburo a grana ultrafine (0,4μm) per un'eccellente affilatura e resistenza all'usura. Il suo ultimo rivestimento composito in cromo-alluminio fornisce un'eccellente resistenza all'ossidazione e all'usura alle alte temperature, garantendo prestazioni stabili anche a velocità e velocità di avanzamento elevate.
Queste frese sono adatte per materiali con durezza fino a HRC45, inclusi acciaio al carbonio, acciaio legato, acciaio pretemprato e ghisa, nonché metalli non ferrosi come le leghe di rame.
